Hey there! As an expansion valve supplier, I've seen my fair share of issues with thermostatic expansion valves (TXVs), especially when it comes to the temperature sensing bulb. This little component plays a huge role in how well the TXV works, and when it has problems, it can mess up the whole refrigeration or air - conditioning system. So, let's dig into the common problems with the temperature sensing bulb in a thermostatic expansion valve.
1. Bulb Placement Issues
One of the most frequent problems is incorrect bulb placement. The temperature sensing bulb needs to be installed in the right spot to accurately measure the superheat of the refrigerant vapor. If it's placed too far from the evaporator outlet, it won't sense the actual temperature of the refrigerant leaving the evaporator. This can lead to inaccurate superheat control.
For example, if the bulb is installed on a section of the suction line that's exposed to external heat sources, like near a hot engine or a warm wall, it'll read a higher temperature than the actual refrigerant superheat. As a result, the TXV will open wider than necessary, allowing too much refrigerant into the evaporator. This can cause flooding of the evaporator, reduced efficiency, and even compressor damage.
On the other hand, if the bulb is installed in a spot where it doesn't get proper contact with the suction line, such as being loosely attached or having an air gap between the bulb and the line, it won't accurately sense the refrigerant temperature. This can lead to the TXV closing too much, restricting the refrigerant flow and causing poor cooling performance.
2. Bulb Damage
Physical damage to the temperature sensing bulb is another common problem. The bulb is usually made of a thin - walled metal or plastic enclosure that contains a refrigerant charge. Any puncture, crack, or crush to the bulb can cause the refrigerant inside to leak out.
If the refrigerant in the bulb leaks, the pressure inside the bulb will drop. Since the TXV operates based on the pressure difference between the bulb and the evaporator, a drop in bulb pressure can cause the valve to malfunction. It might either stay open too wide or close completely, depending on the extent of the pressure loss.
For instance, a small leak might cause the valve to open wider gradually, leading to over - feeding of the evaporator. A more significant leak could cause the valve to close, cutting off the refrigerant supply and stopping the cooling process altogether.
3. Charge Loss
Apart from damage - related leaks, the temperature sensing bulb can also lose its refrigerant charge over time due to permeation. Even if the bulb enclosure seems intact, some refrigerants can slowly seep through the material of the bulb.
This slow charge loss can cause a gradual change in the bulb's pressure - temperature relationship. As the charge decreases, the bulb will have less ability to respond to temperature changes accurately. The TXV might start to operate sluggishly, with delayed opening or closing responses. This can lead to inconsistent cooling performance and increased energy consumption.
4. Incorrect Charge
Sometimes, the temperature sensing bulb can be filled with the wrong refrigerant charge during manufacturing or servicing. Each TXV is designed to work with a specific refrigerant and a specific charge amount in the sensing bulb.
If the charge is too high, the bulb will exert more pressure on the TXV diaphragm, causing the valve to open wider than normal. This can result in over - feeding of the evaporator, as mentioned earlier. Conversely, if the charge is too low, the valve will close more than it should, restricting the refrigerant flow and reducing the cooling capacity.
5. Vibration and Movement
In some applications, the refrigeration or air - conditioning system might be subject to vibration or movement. For example, in mobile refrigeration units or systems installed in vehicles, the constant vibration can cause the temperature sensing bulb to become loose or detached from the suction line.
When the bulb moves or vibrates, it can lose its proper contact with the suction line, leading to inaccurate temperature sensing. Additionally, the vibration can cause internal damage to the bulb, such as breaking the internal capillary tube that connects the bulb to the TXV diaphragm. This can disrupt the pressure transfer and cause the TXV to malfunction.
6. Contamination
The temperature sensing bulb can also be affected by contamination. Moisture, dirt, or debris can enter the bulb either during installation or through leaks in the system.
Moisture can react with the refrigerant in the bulb, forming acids that can corrode the internal components of the bulb and the TXV. Dirt and debris can clog the capillary tube that connects the bulb to the diaphragm, preventing the proper transfer of pressure. This can lead to erratic operation of the TXV, with the valve opening and closing randomly or not responding to temperature changes at all.
7. Aging
Like any other component, the temperature sensing bulb ages over time. The materials used in the bulb can degrade, and the refrigerant charge can become less effective.
As the bulb ages, its ability to accurately sense temperature and transfer pressure to the TXV diaphragm can decline. This can result in a gradual deterioration of the TXV's performance, with reduced cooling efficiency and increased energy consumption.
Examples of Affected Expansion Valves

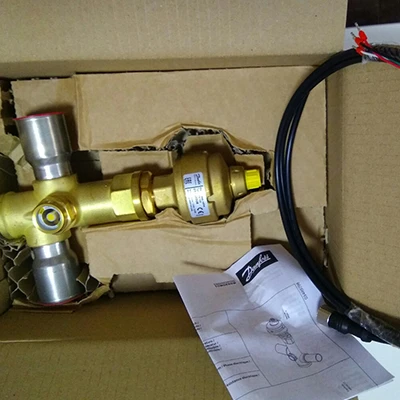

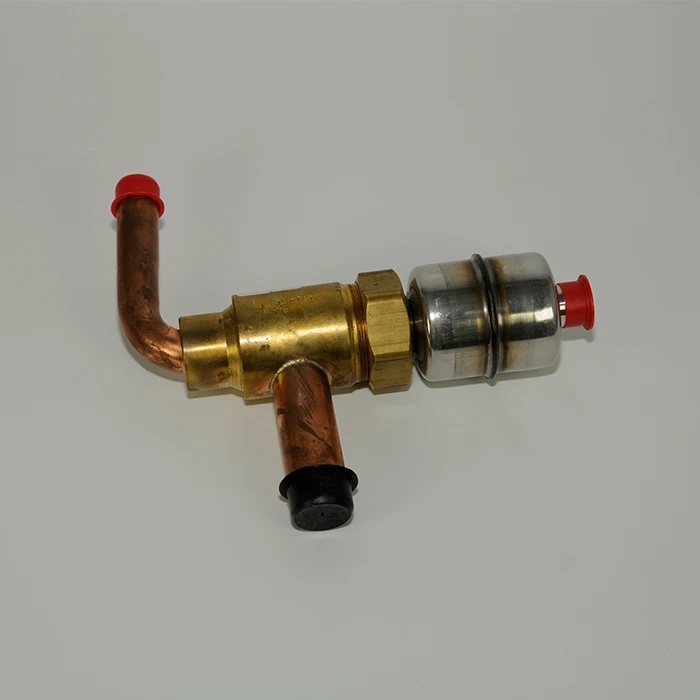

To give you an idea of the expansion valves that can be affected by these temperature sensing bulb problems, here are some examples. You can check out the Carrier Expansion Valve 32GB402544 and the Carrier Expansion Valve 034G0508. Also, the York Expansion Valve is another valve where these bulb - related issues can occur.
If you're facing any of these problems with your thermostatic expansion valves or want to learn more about choosing the right valves for your applications, don't hesitate to reach out. We're here to help you with all your expansion valve needs and can assist you in getting the best - performing valves for your systems. Whether it's troubleshooting existing issues or selecting new valves, we've got the expertise. So, let's start a conversation and see how we can work together to improve your refrigeration or air - conditioning systems.
