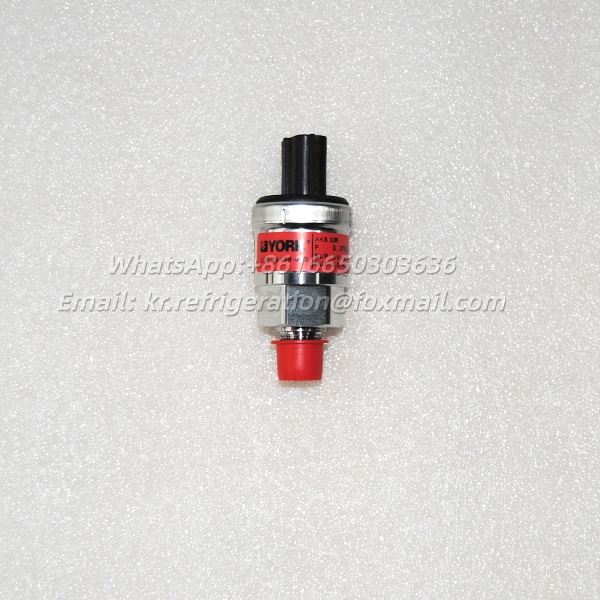

Johnson Controls 025-29139-003 Pressure Transducer Danfoss

Johnson Controls 025-29139-003 Pressure Transducer Danfoss
Details:
25-29139-003 Pressure Transmitter (York / Johnson Controls, PENN model P499RFAT514) This is an OEM pressure transmitter for centrifugal/lunger chiller units such as YK, YT, etc. on the market. The range is 0–275 PSI (0–18.96 bar), which is the medium range, between -002 (0–200 psi) and -001 (0–400 psi). Electrical and mechanical parameters: Power supply 4.75–5.25 VDC (Class 2), proportional output 0.5–4.5 VDC (0.5 V corresponds to 0 psi, 4.5 V corresponds to 275 psi), pressure-sensitive sensor element, accuracy approximately ±0.5% FS, interface 1/4″-18 thread, stainless steel for liquid contact, medium/environment temperature -40 to 125 ℃, overpressure resistance 400 psi, burst pressure 1000 psi, suitable for refrigerant, oil circuit and water circuit pressure monitoring.
Send Inquiry
Description
Send Inquiry

Product Name：Johnson Controls 025-29139-003 Pressure Transducer danfoss

product-600-600









Product Description



25-29139-003 Pressure Transmitter (York / Johnson Controls, PENN model P499RFAT514)
This is an OEM pressure transmitter for centrifugal/lunger chiller units such as YK, YT, etc. on the market. The range is 0–275 PSI (0–18.96 bar), which is the medium range, between -002 (0–200 psi) and -001 (0–400 psi).
Electrical and mechanical parameters: Power supply 4.75–5.25 VDC (Class 2), proportional output 0.5–4.5 VDC (0.5 V corresponds to 0 psi, 4.5 V corresponds to 275 psi), pressure-sensitive sensor element, accuracy approximately ±0.5% FS, interface 1/4″-18 thread, stainless steel for liquid contact, medium/environment temperature -40 to 125 ℃, overpressure resistance 400 psi, burst pressure 1000 psi, suitable for refrigerant, oil circuit and water circuit pressure monitoring.



product-800-800
product-1200-1200
product-1200-1200
product-800-800



03


Transportation Methods

UPS, DHL,FeDex, Sea and air freight, etc


04


Package

Wooden cases and cartons and so on
