YORK 022-08883-000 Valve

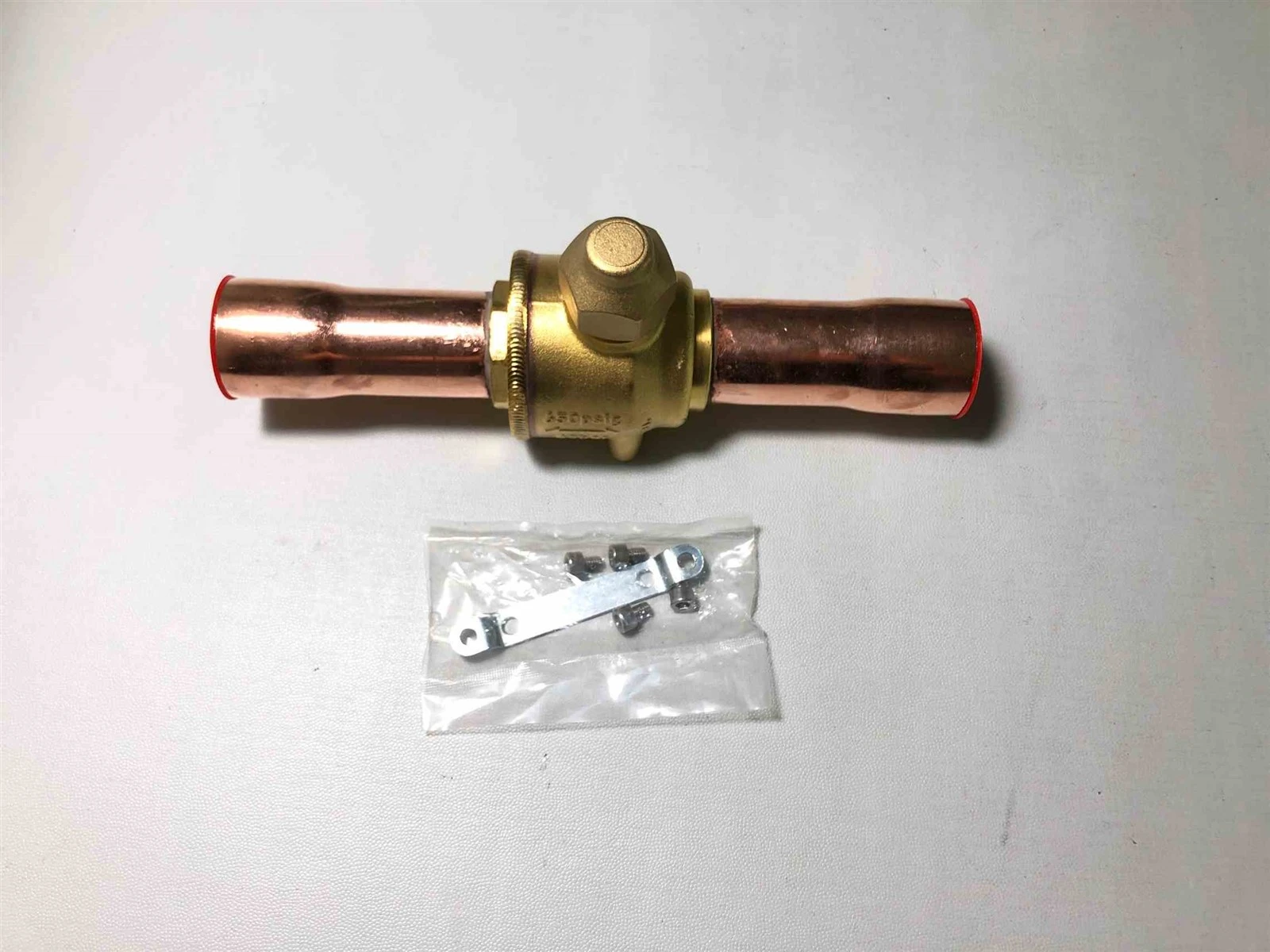

The YORK 022-08883-000 is a genuine OEM 1-5/8" ODS Suction Ball Valve (YORK factory description: VALVE BALL 1-5/8 ODS), designed for the suction line of YORK chillers, air-cooled scroll condensing units and commercial refrigeration systems. Installed on the compressor suction piping, this heavy-duty ball valve allows technicians to isolate the suction circuit for routine service, system evacuation, refrigerant recovery and component replacement, while providing reliable, bubble-tight shut-off during normal operation. Key specifications: 1-5/8" ODS (outside diameter solder) connections for brazed installation, robust brass body construction for long service life, full-port design to minimize pressure drop and maintain system efficiency, and quarter-turn operation for fast, easy control. Approximate weight 4 lbs (1.8 kg), dimensions 11" x 10.5" x 3.25". Commonly used on YORK YCUL series condensing units and various YORK applied chiller models. Please note this is a manual ball valve, NOT a solenoid valve. Condition: 100% brand new, factory tested. Standard export carton packing, MOQ 1 pc, worldwide shipping available. Please confirm connection size and unit model before ordering.
