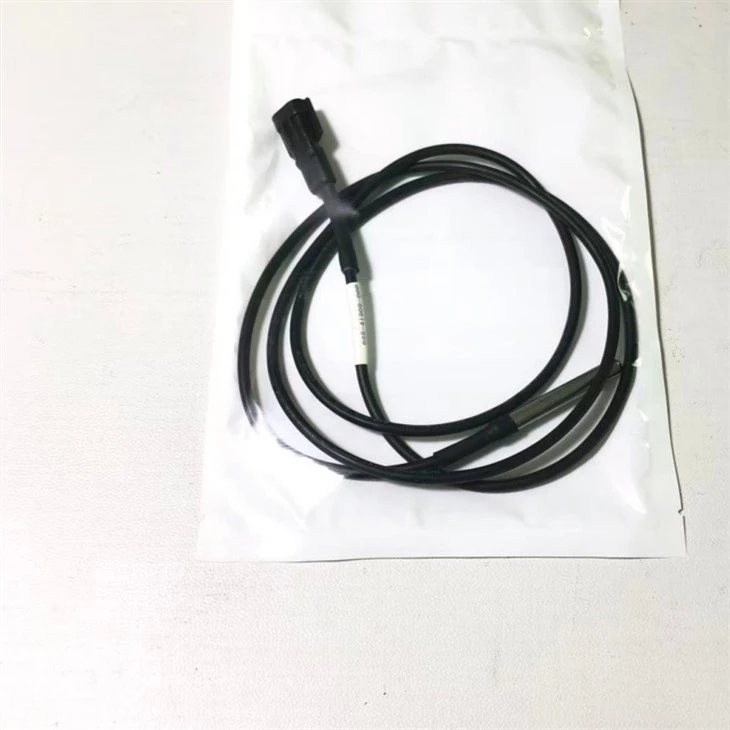

York Temperature Sensor 025-41909-000

YORK 025-41909-000 is the original factory temperature sensor for the compressor system of York's refrigeration units. In mainstream series units such as York's YS, YT, and YK, the standard installation location is the horizontal exhaust pipe section at the compressor's exhaust outlet. The details are as follows:
1. Core Installation Point: It is installed on the exhaust process interface at the compressor outlet, usually at a straight pipe section 10 to 30 cm downstream of the exhaust outlet, avoiding air flow disturbance components such as bends and three-way valves; the temperature sensing end of the sensor is inserted into the pipe and is located in the center of the air flow, capable of accurately detecting the high-temperature refrigerant gas temperature discharged by the compressor, serving as the signal collection source for the exhaust overheating protection of the unit.
2. Unit Corresponding Markings: In the electrical system of York units, it corresponds to the exhaust temperature sensor RT2. The sensor's wiring terminal is connected through a dedicated wiring harness to the corresponding temperature input terminal on the main control board, participating in the logic for over-limit protection of compressor exhaust temperature.
3. Additional Information: In a few models, this model can also be adapted for the compressor suction temperature monitoring point. It is installed at the corresponding interface of the suction pipe. Specific details need to be confirmed by referring to the corresponding unit's parts manual. When replacing, it is recommended to replace along the original sensor wiring and installation point position to ensure matching detection accuracy and protection logic.
