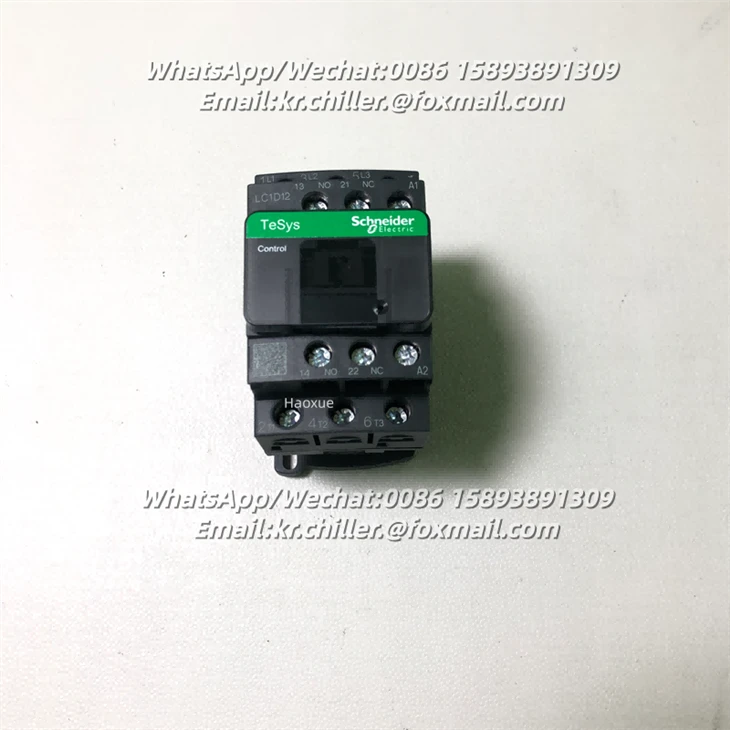

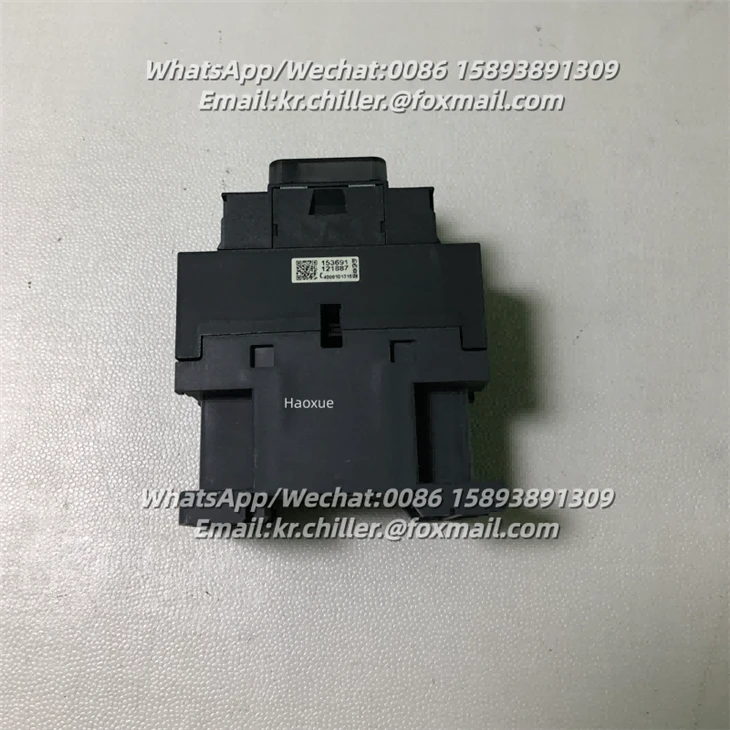

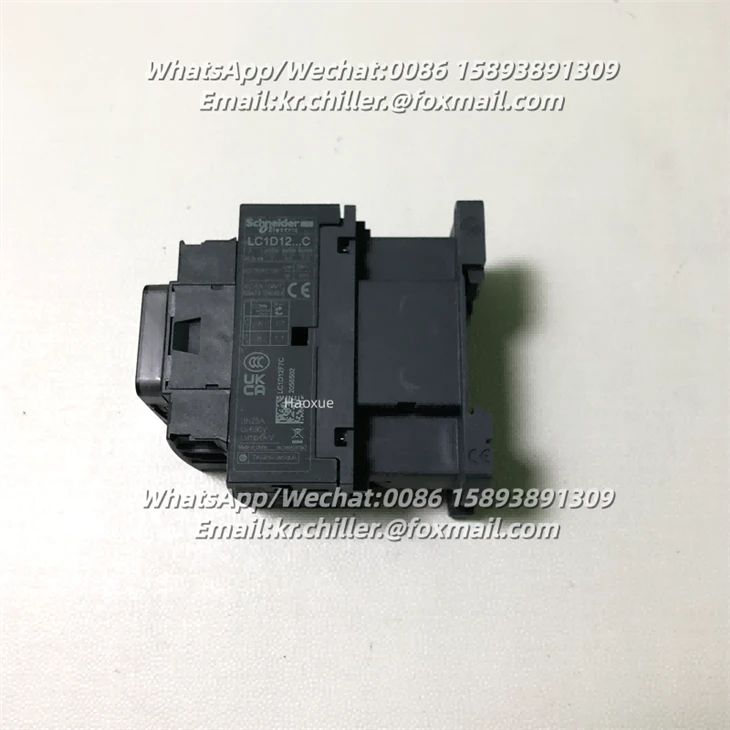

Product Name：Schneider LC1D12F7C TeSys D AC Contactor
Core Features
1. Advantage：
The LC1D12F7C is a TeSys D series 3-pole contactor rated for 12A operational current with a 110V AC coil, commonly used to switch compressor and fan motors on HVAC and refrigeration units. The TeSys D platform is widely recognized for reliable mechanical endurance-over 10 million operations-and consistent contact performance even under frequent switching cycles. The screw-terminal design allows quick, tool-secured wiring during installation or replacement.
2.Supply & Packaging:
Brand: Schneider Electric
Model: LC1D12F7C
Series: TeSys D Control
Poles: 3P + 1NO + 1NC auxiliary
Coil Voltage: 110V AC 50/60Hz
Rated Current: 12A
Motor Power: 5.5kW @ 380V
Gross Weight: ~0.35 kg

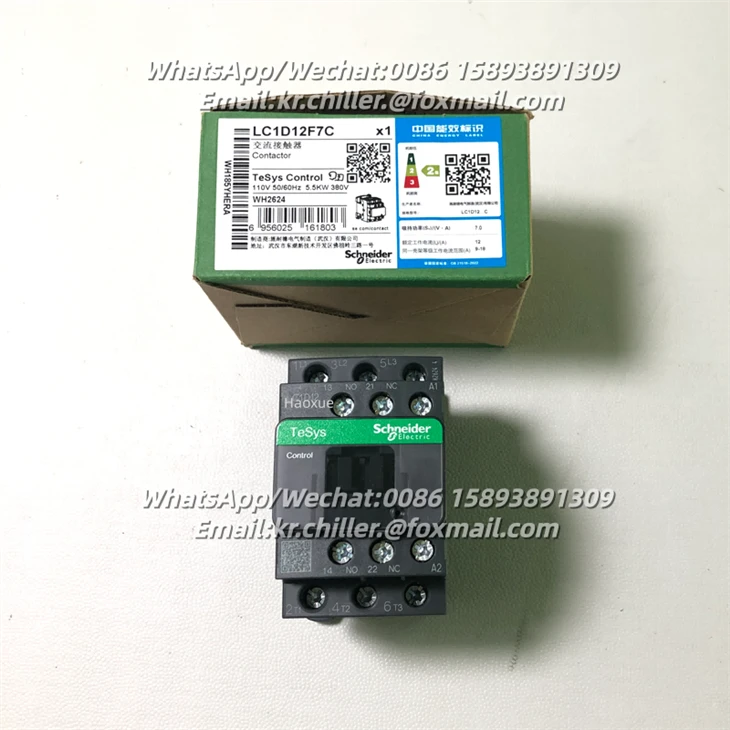

Packing: Original Schneider green cardboard box
Origin: Made in China (Schneider Wuhan plant)
3.Our Advantage
Contactors are wear-and-tear parts that eventually fail after hundreds of thousands of switching cycles-common symptoms include chattering, burned contacts, or the compressor failing to start. We stock commonly used TeSys D contactor models with different coil voltages (24V, 110V, 220V) so you can grab the exact rating you need. If you are unsure which coil voltage your unit uses, check the label on your existing contactor or send us a photo.
Transportation Methods
UPS, DHL,FeDex, Sea and air freight, etc
Package
Wooden cases and cartons and so on
FAQ
Q: How can we contact you?
A:1. WhatsApp / Wechat: +86 15893891309 Violet Yan
Q: 2.What does the "F7C" in LC1D12F7C mean?

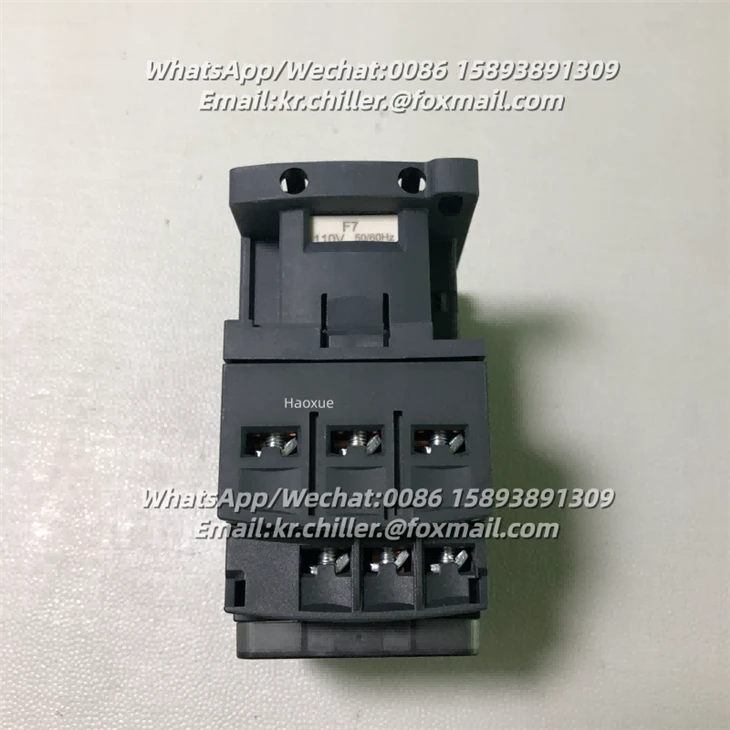

A：The suffix indicates coil specifications-"F7" means 110V AC 50/60Hz coil, and "C" means standard Schneider product range. Do not substitute a different coil voltage rating; the contactor will not pull in correctly.
Q: 3.How do I know if my contactor is bad?
A: Signs include a chattering or buzzing sound from the contactor, visible pitting or burning on the main contacts, overheating terminals, or the compressor refusing to start even though the control signal is present.
